5 Model comparisons and testing for lack of fit

5.1 F-tests for comparing two models

5.1.1 Example:

Model A: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1\)

Model B: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 x_3\)

i.e. in Model A, \(\beta_2=\beta_3=0\).

Model A is the reduced or simpler model and model B is the full model.

The \(\mbox{SSE}\) for Model B will be smaller than the \(\mbox{SSE}\) for Model A but is the reduction enough to justify the two extra parameters?

We have:

Model A:

\[\mbox{SST} = \mbox{SSR}(A) + \mbox{SSE}(A)\]

Model B:

\[\mbox{SST} = \mbox{SSR}(B) + \mbox{SSE}(B)\]

Note:

\[\mbox{SSE}(A)-\mbox{SSE}(B)=\mbox{SSR}(B)-\mbox{SSR}(A)\]

5.1.2 F-test to compare models:

Model A: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + ... + \beta_q x_q\)

Model B: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + ... + \beta_k x_k\)

where \(q<k\) and Model A is nested within Model B.

\(H_0\): \(\beta_{q+1} = \beta_{q+2} = ... = \beta_k = 0\)

\(H_A\): At least one \(\beta_{q+1}, ... , \beta_k \neq 0.\)

\[F =\frac{(\mbox{SSE}(A)-\mbox{SSE}(B))/(k-q)}{\mbox{SSE}(B)/(n-p)}.\]

Under \(H_0\), \[F \sim F_{(k-q),(n-p)},\] where \(p = (k+1).\)

Note: Equivalently, the F-test can be written as:

\[F =\frac{(\mbox{SSR}(B)-\mbox{SSR}(A))/(k-q)}{\mbox{SSE}(B)/(n-p)}.\]

Note: Models A and B must be hierarchical for the F-test to be valid.

5.1.3 Example: Steam data

This data is from a study undertaken to understand the factors that caused energy consumption in detergent manufacturing over a 25 month period. Example from Draper and Smith (1966).

The data variables are:

y = STEAM Pounds of steam used monthly.

x1 = TEMP Average atmospheric temperature (\(^o\)F).

x2 = INV Inventory: pounds of real fatty acid in storage per month.

x3 = PROD Pounds of crude glycerin made.

x4 = WIND Average wind velocity (in mph).

x5 = CDAY Calendar days per month.

x6 = OPDAY Operating days per month.

x7 = FDAY Days below \(32^o\)F.

x8 = WIND2 Average wind velocity squared.

x9 = STARTS Number of production start-ups during the month.

library(tidyverse)
steamdata <- read.csv("data/Steam.csv")
steamdata |> glimpse()

## Rows: 25
## Columns: 10
## $ STEAM  <dbl> 10.98, 11.13, 12.51, 8.40, 9.27, 8.73, 6.36, 8.50, 7.82, 9.14, …
## $ TEMP   <dbl> 35.3, 29.7, 30.8, 58.8, 61.4, 71.3, 74.4, 76.7, 70.7, 57.5, 46.…
## $ INV    <dbl> 5.20, 5.12, 6.19, 3.89, 6.28, 5.76, 3.45, 6.57, 5.69, 6.14, 4.8…
## $ PROD   <dbl> 0.61, 0.64, 0.78, 0.49, 0.84, 0.74, 0.42, 0.87, 0.75, 0.76, 0.6…
## $ WIND   <dbl> 7.4, 8.0, 7.4, 7.5, 5.5, 8.9, 4.1, 4.1, 4.1, 4.5, 10.3, 6.9, 6.…
## $ CDAY   <int> 31, 29, 31, 30, 31, 30, 31, 31, 30, 31, 30, 31, 31, 28, 31, 30,…
## $ OPDAY  <int> 20, 20, 23, 20, 21, 22, 11, 23, 21, 20, 20, 21, 21, 19, 23, 20,…
## $ FDAY   <int> 22, 25, 17, 22, 0, 0, 0, 0, 0, 0, 11, 12, 25, 18, 5, 7, 0, 0, 0…
## $ WIND2  <dbl> 54.8, 64.0, 54.8, 56.3, 30.3, 79.2, 16.8, 16.8, 16.8, 20.3, 106…
## $ STARTS <int> 4, 5, 4, 4, 5, 4, 2, 5, 4, 5, 4, 4, 5, 5, 4, 4, 6, 4, 3, 4, 4, …

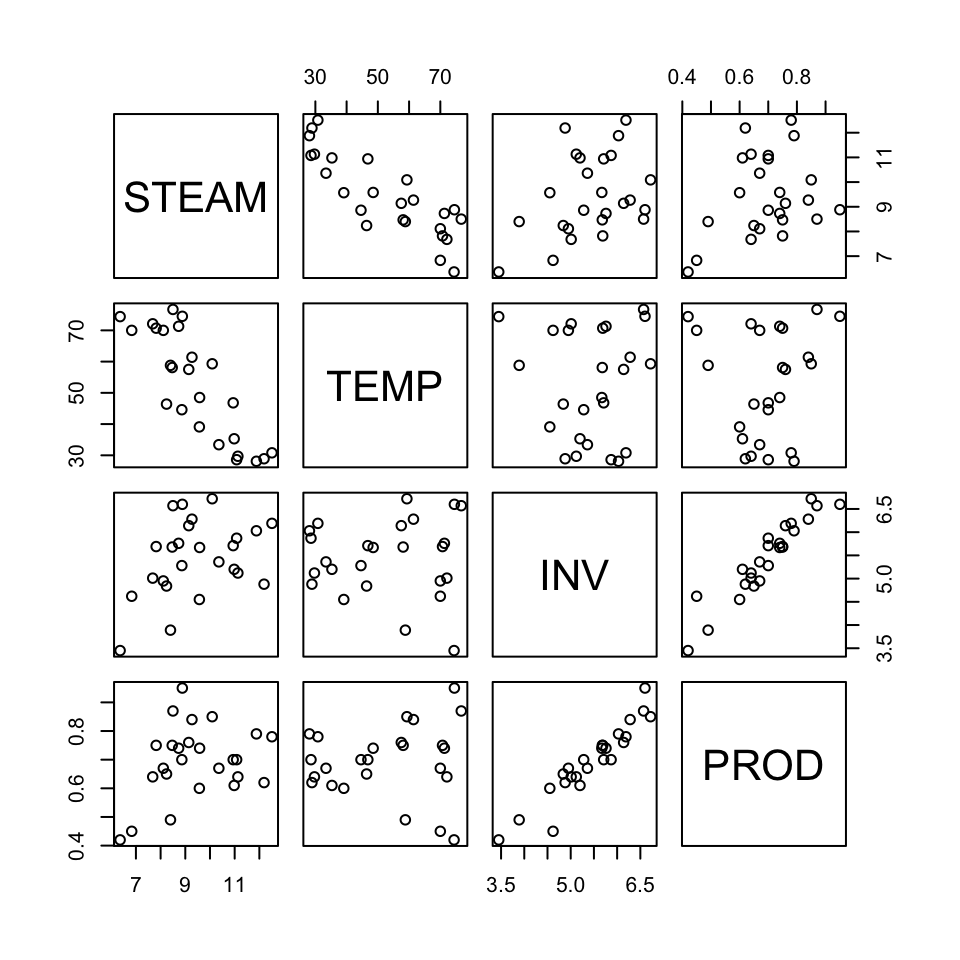

steamdata |>
  dplyr::select(STEAM, TEMP, INV, PROD) |>
  pairs()

Model A: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1\)

Model B: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 x_3\)

where \(x_1\) = TEMP, \(x_2\) = INV, \(x_3\) = PROD.

modelA <- lm(STEAM ~ TEMP, steamdata)
modelB <- lm(STEAM ~ TEMP + INV + PROD, steamdata)

summary(modelA)

##
## Call:
## lm(formula = STEAM ~ TEMP, data = steamdata)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -1.6789 -0.5291 -0.1221  0.7988  1.3457
##
## Coefficients:
##             Estimate Std. Error t value Pr(>|t|)
## (Intercept) 13.62299    0.58146  23.429  < 2e-16 ***
## TEMP        -0.07983    0.01052  -7.586 1.05e-07 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.8901 on 23 degrees of freedom
## Multiple R-squared:  0.7144, Adjusted R-squared:  0.702
## F-statistic: 57.54 on 1 and 23 DF,  p-value: 1.055e-07

summary(modelB)

##
## Call:
## lm(formula = STEAM ~ TEMP + INV + PROD, data = steamdata)
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -1.2348 -0.4116  0.1240  0.3744  1.2979
##
## Coefficients:
##              Estimate Std. Error t value Pr(>|t|)
## (Intercept)  9.514814   1.062969   8.951 1.30e-08 ***
## TEMP        -0.079928   0.007884 -10.138 1.52e-09 ***
## INV          0.713592   0.502297   1.421     0.17
## PROD         0.330497   3.267694   0.101     0.92
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1
##
## Residual standard error: 0.652 on 21 degrees of freedom
## Multiple R-squared:  0.8601, Adjusted R-squared:  0.8401
## F-statistic: 43.04 on 3 and 21 DF,  p-value: 3.794e-09

anova(modelA)

## Analysis of Variance Table
##
## Response: STEAM
##           Df Sum Sq Mean Sq F value    Pr(>F)
## TEMP       1 45.592  45.592  57.543 1.055e-07 ***
## Residuals 23 18.223   0.792
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

anova(modelB)

## Analysis of Variance Table
##
## Response: STEAM
##           Df Sum Sq Mean Sq  F value    Pr(>F)
## TEMP       1 45.592  45.592 107.2523 1.046e-09 ***
## INV        1  9.292   9.292  21.8588 0.0001294 ***
## PROD       1  0.004   0.004   0.0102 0.9203982
## Residuals 21  8.927   0.425
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

\(H_0\): \(\beta_2 = \beta_3 = 0\)

\(H_A\): At least one \(\beta_2, \beta_3 \neq 0\)

\[\begin{align*} F_{obs} & = \frac{(\mbox{SSE}(A)-\mbox{SSE}(B))/(k-q)}{\mbox{SSE}(B)/(n-p)}\\ & = \frac{(18.223-8.927)/(3-1)}{8.927/(25-4)}=10.93.\\ \end{align*}\]

\(F_{(0.05,2,21)} = 3.467\), \(F_{(0.01,2,21)} = 5.780\)

P-value \(<0.01\), we reject \(H_0\) and conclude that at least one of \(\beta_2\), \(\beta_3\) differ from 0.

anova(modelA, modelB)

## Analysis of Variance Table
##
## Model 1: STEAM ~ TEMP
## Model 2: STEAM ~ TEMP + INV + PROD
##   Res.Df    RSS Df Sum of Sq      F    Pr(>F)
## 1     23 18.223
## 2     21  8.927  2    9.2964 10.934 0.0005569 ***
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

5.2 Sequential sums of squares

5.2.1 Example:

Model A: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1\)

Model B: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2+ \beta_3 x_3\)

As noted earlier, the reduction in \(\mbox{SSE}\) going from Model A to B, is equivalent to the increase in \(\mbox{SSR}\), i.e. \[\mbox{SSE}(A)-\mbox{SSE}(B)=\mbox{SSR}(B)-\mbox{SSR}(A).\]

We can denote: \[\mbox{SSR}(B|A)=\mbox{SSR}(B)-\mbox{SSR}(A).\]

These are the sequential sums of squares. We can write: \[\begin{align*} \mbox{SST} & = \mbox{SSR}(B) + \mbox{SSE}(B)\\ & = \mbox{SSR}(A) +\mbox{SSR}(B) - \mbox{SSR}(A) + \mbox{SSE}(B)\\ & = \mbox{SSR}(A) + \mbox{SSR}(B|A) + \mbox{SSE}(B).\\ \mbox{SST} - \mbox{SSE}(B) &= \mbox{SSR}(A) + \mbox{SSR}(B|A)\\ \mbox{SSR}(B) &= \mbox{SSR}(A) + \mbox{SSR}(B|A).\\ \end{align*}\]

If model A is appropriate, \(\mbox{SSR}(B|A)\) should be small.

5.2.2 Example: Steam data

Model A: \(\mathbb{E}[y] = \beta_0\)

Model B: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1\)

Model C: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2\)

Model D: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 x_3\)

SOURCE	df	seqSS	Notation
TEMP	1	45.592	SSR(B\|A)
INV	1	9.292	SSR(C\|B)
PROD	1	0.004	SSR(D\|C)

From the ANOVA table,

\[\begin{align*} \mbox{SSR}(D)& =54.889\\ & = \mbox{SSR}(B|A) + \mbox{SSR}(C|B) + \mbox{SSR}(D|C)\\ \end{align*}\]

We can use the F-test for comparing two models to test Seq SS.

1):

Model A: \(\mathbb{E}[y] = \beta_0\)

Model D: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 x_3\)

\(H_0\): \(\beta_1 = \beta_2 = \beta_3 = 0\)

\(H_a\): Not all \(\beta_i\) are 0

\(\mbox{SSR}(A) = 0\)

\(\mbox{SSR}(D|A) = \mbox{SSR}(D) = 54.889.\)

\[F_{obs} = \frac{\mbox{SSR}(D|A)/(k-q)}{\mbox{SSE}(D)/(n-p)} = \frac{54.889/(3-0)}{8.927/(25-4)}=43.04 \]

P-value \(< 0.001\), we reject \(H_0\) and conclude that not all \(\beta_i\) are 0.

2):

Model C: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2\)

Model D: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 x_3\)

\(H_0\): \(\beta_3 = 0\)

\(H_a\): \(\beta_3 \neq 0\)

\(\mbox{SSR}(D|C) = 0.004\)

\[F_{obs} = \frac{\mbox{SSR}(D|C)/(k-q)}{\mbox{SSE}(D)/(n-p)} = \frac{0.004/1}{8.927/21} = 0.01\]

\(F_{(0.1,1,21)} = 2.96096\), so P-value \(>0.05\).

We fail to reject \(H_0\) and conclude there is no evidence \(\beta_3 \neq 0\), i.e. \(x_3\) is not needed in the model.

This F-test is equivalent to a t-test for \(\beta_3\): \[T = 0.1\] \[F = (0.1)(0.1) = 0.01\]

The p-value for both tests \(= 0.92\).

Note: The Seq SS values depend on the order in which the variables are added to the model (unless the variables are uncorrelated).

The anova and aov functions in R implement a sequential sum of squares (type I). Function Anova(, type= 2) in library(car) gives the adjusted SS (type II)

modelB <- lm(STEAM ~ TEMP + INV + PROD, steamdata)

anova(modelB)

## Analysis of Variance Table
##
## Response: STEAM
##           Df Sum Sq Mean Sq  F value    Pr(>F)
## TEMP       1 45.592  45.592 107.2523 1.046e-09 ***
## INV        1  9.292   9.292  21.8588 0.0001294 ***
## PROD       1  0.004   0.004   0.0102 0.9203982
## Residuals 21  8.927   0.425
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

anova(lm(STEAM ~ PROD  + INV + TEMP, steamdata))

## Analysis of Variance Table
##
## Response: STEAM
##           Df Sum Sq Mean Sq F value    Pr(>F)
## PROD       1  5.958   5.958  14.015  0.001197 **
## INV        1  5.242   5.242  12.330  0.002076 **
## TEMP       1 43.690  43.690 102.776 1.524e-09 ***
## Residuals 21  8.927   0.425
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

library(car)
Anova(modelB, type= 2)

## Anova Table (Type II tests)
##
## Response: STEAM
##           Sum Sq Df  F value    Pr(>F)
## TEMP      43.690  1 102.7760 1.524e-09 ***
## INV        0.858  1   2.0183    0.1701
## PROD       0.004  1   0.0102    0.9204
## Residuals  8.927 21
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

5.3 Testing for lack of fit

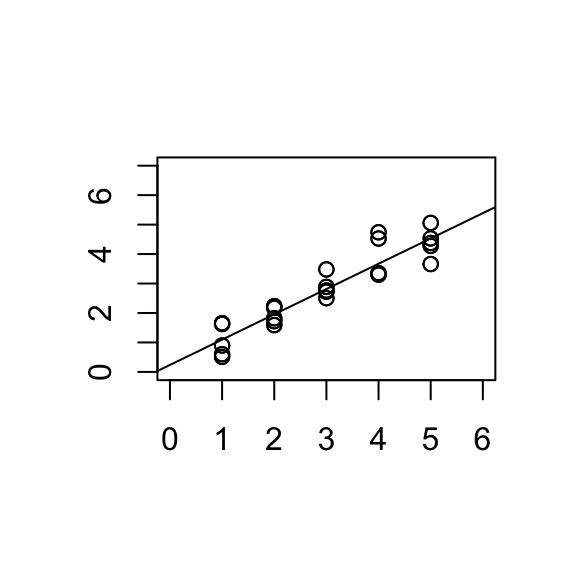

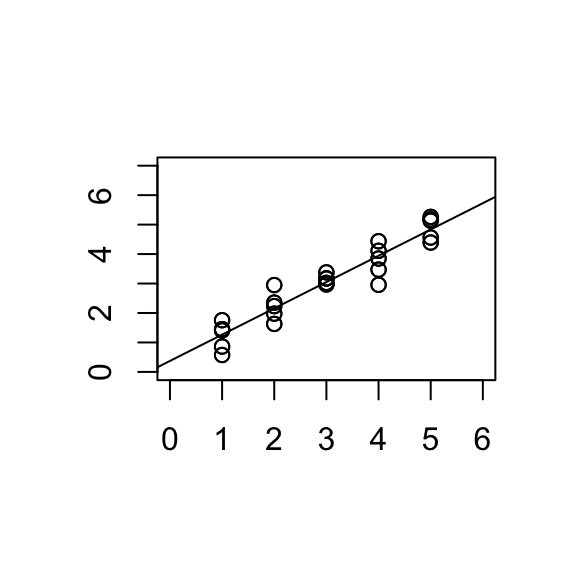

When replicate values of response are available at some or all of the \(X\) values, a formal test of model adequacy is available.

The test is based on comparing the fitted value to the average response for that level of \(X\).

NOTATION: Suppose there are \(g\) different values of \(X\) and at the \(i^{th}\) of these, there are \(n_i\) observations of \(Y\).

Let \(\bar{y}_{i.}=\frac{1}{n_i}\sum_{j=1}^{n_i} y_{ij}\), \(\quad i=1, ..., g.\)

Note: this is the estimate of the group means in the 1-way ANOVA model (means model): \(y_{ij} = \mu_{i} + \epsilon_{ij}\), where \(\epsilon_{ij}\) iid \(N(0, \sigma^2)\).

Then the pure error sums of squares,

\[\begin{align*} \mbox{SS}_{\mbox{PE}}& =\sum_{i=1}^g \sum_{j=1}^{n_i} (y_{ij}- \bar{y}_{i.})^2\\ df_{PE} & = \sum_{i=1}^g (n_i-1)=n-g, \hspace{1cm} \mbox{where } n=n_1+...+n_g.\\ \end{align*}\]

Therefore

\[\frac{\sum_{i=1}^g \sum_{j=1}^{n_i} (y_{ij}- \bar{y}_{i.})^2}{n-g}\]

is an estimator of \(\sigma^2\).

NOTE:

Here we use the replicates to obtain an estimate of \(\sigma^2\) which is independent of the fitted model (SLR).

*This estimator of \(\sigma^2\) corresponds to the \(\mbox{MSE}\) in the ANOVA table for the 1-way ANOVA model.

The 1-way ANOVA model has \(g\) parameters. The SLR model has \(2\) parameters. The latter is more restrictive as it requires linearity.
\(df_{PE} = n-g\),
\(df_{SLR} = n-2\).

The SLR model has a residual SS which is \(\geq\) residual SS from the means model, i.e. \(\mbox{SSE} \geq \mbox{SS}_{\mbox{PE}}\).

A large difference \(\mbox{SSE} - \mbox{SS}_{\mbox{PE}}\) indicates lack of fit of the regression line.

\(\mbox{SS}(\mbox{lack of fit})= \mbox{SSE} - \mbox{SS}_{\mbox{PE}} = \sum_{i,j} (\hat{y}_{i,j} - \bar{y}_i)^2\), the sum of squared distances of between the SLR estimate and the means model estimate of \(\mathbb{E}(Y_{i,j})\).

Lack of fit is tested by the statistic:

\[F_{obs}=\frac{\left ( \mbox{SSE}-\mbox{SS}_{\mbox{PE}} \right )/(g-2)}{\mbox{SS}_{\mbox{PE}}/(n-g)}.\]

\(H_0\): Regression model fits well

\(H_A\): Regression model displays lack of fit

Under \(H_0\), \(F_{obs} \sim F_{g-2,n-g}\).

Note: This generalises to multiple predictors - the pure error estimate of \(\sigma^2\) is based on SS between \(y_i\) for cases with the same values on all predictors. \(df_{SLR} = p\) instead of 2.

Reject for large values of \(F_{obs}\).

5.3.1 Example: Voltage

Example from Ramsey and Schafer (2002) (case0802 in library(Sleuth3)).

Batches of electrical fluids were subjected to constant voltages until the insulating properties of the fluid broke down.

\(Y\): time to breakdown

\(X\): Voltage

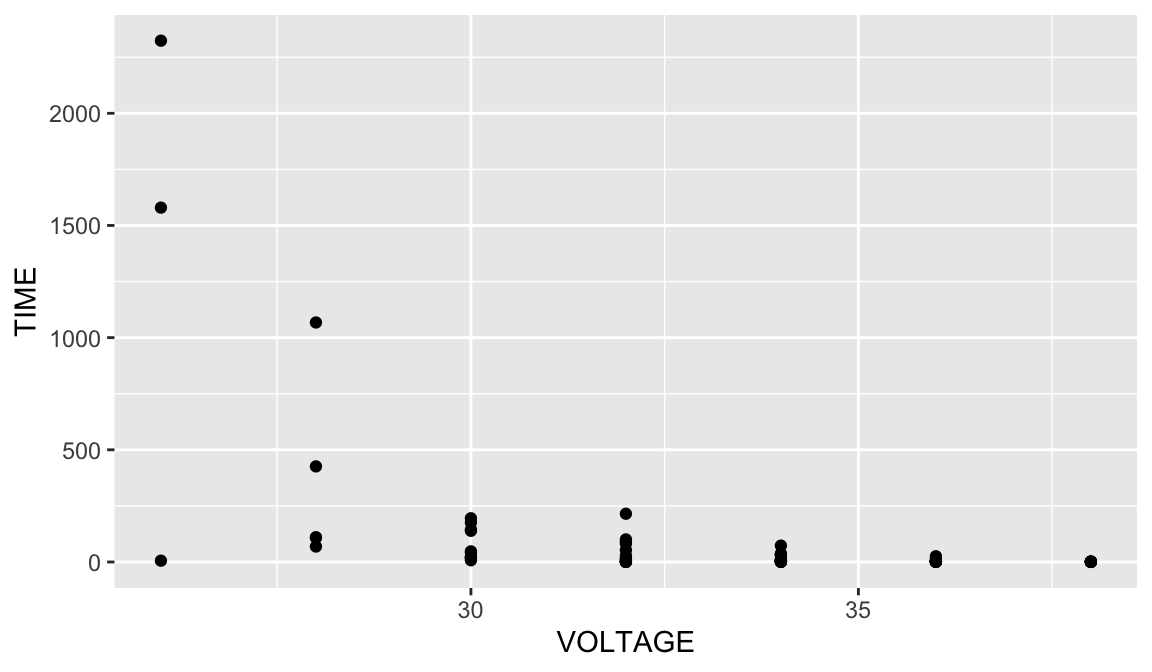

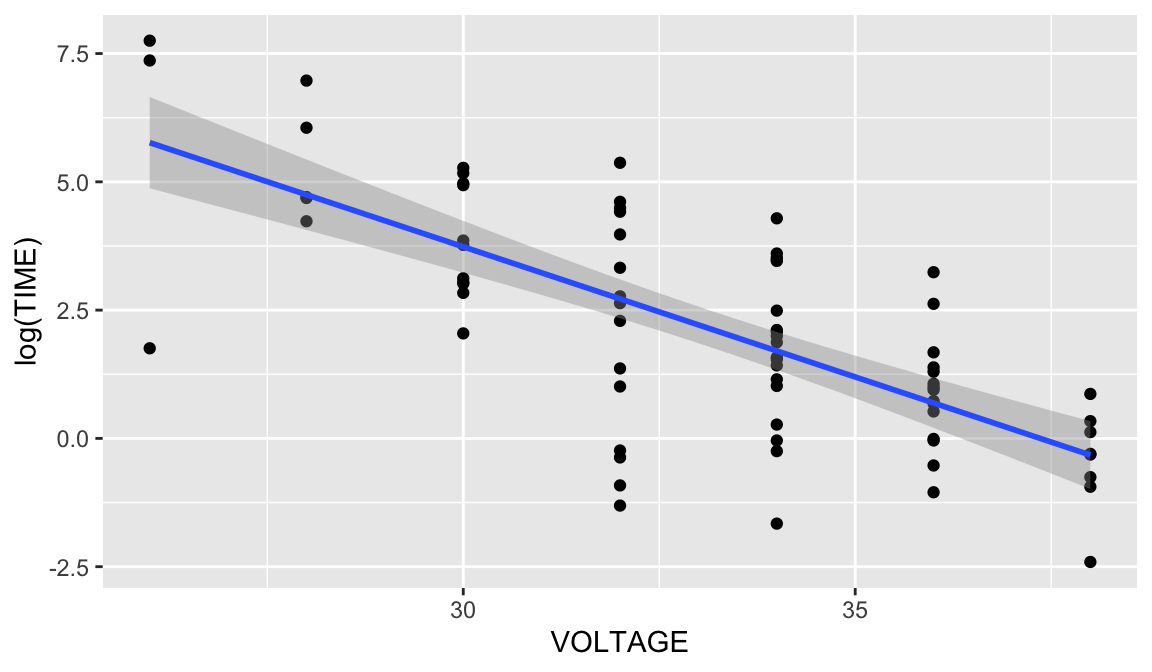

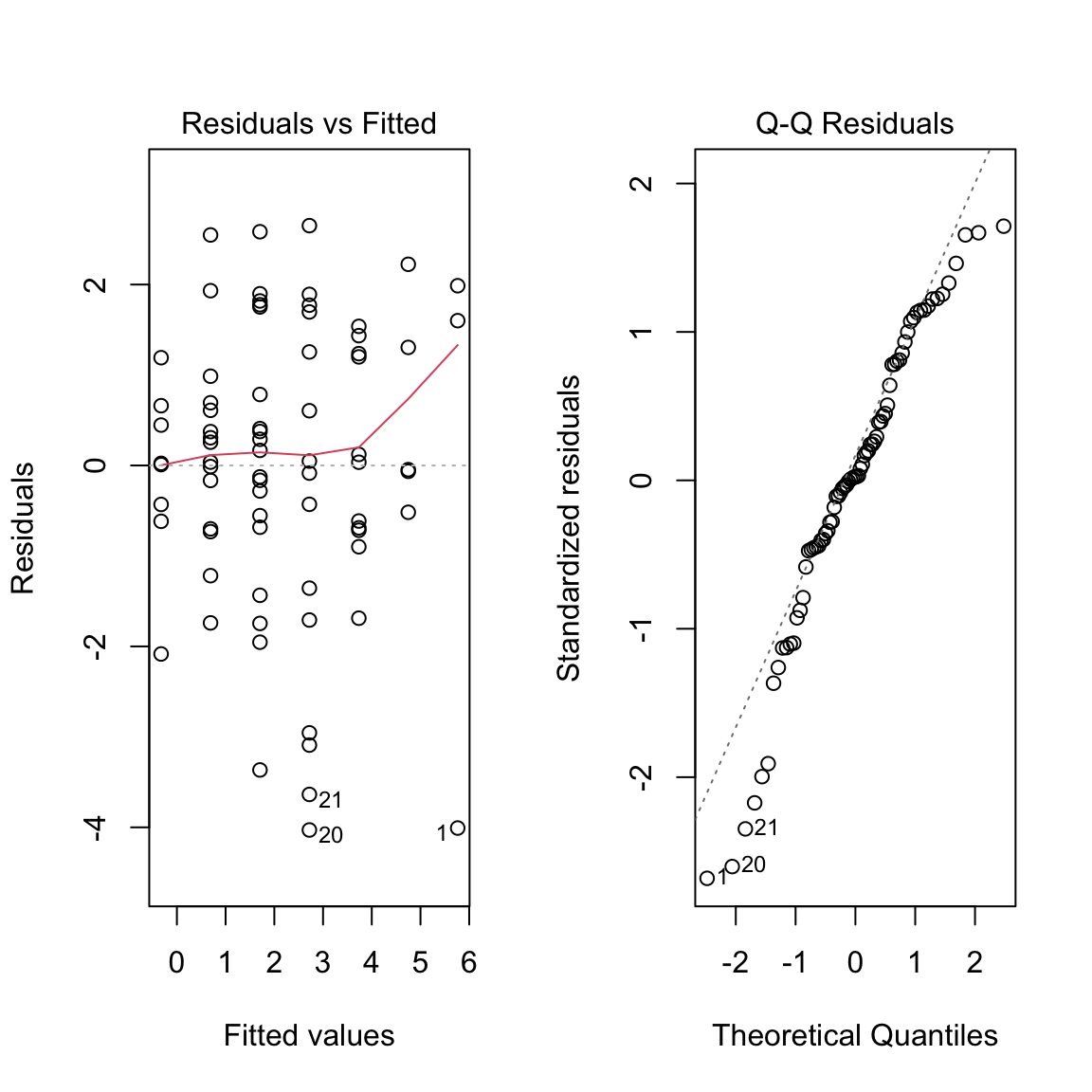

The scatterplot of \(Y\) vs. \(X\) shows evidence of non-linearity and non-constant variance. The response was log transformed to resolve this.

\(H_0: \beta_1=0\)

\(H_A: \beta_1 \neq 0\)

\(F = 78.4\), \(p<0.001\). We reject \(H_0\) and conclude that \(\beta_1 \neq 0\).

anova(lm(log(TIME)~VOLTAGE, data.voltage))

## Analysis of Variance Table
##
## Response: log(TIME)
##           Df Sum Sq Mean Sq F value   Pr(>F)
## VOLTAGE    1 190.15 190.151  78.141 3.34e-13 ***
## Residuals 74 180.07   2.433
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

\(H_0:\) S.L.R model is appropriate/correct model

\(H_A:\) S.L.R model has lack of fit.

anova(lm(log(TIME)~as.factor(VOLTAGE) ,data.voltage))

## Analysis of Variance Table
##
## Response: log(TIME)
##                    Df Sum Sq Mean Sq F value    Pr(>F)
## as.factor(VOLTAGE)  6 196.48  32.746  13.004 8.871e-10 ***
## Residuals          69 173.75   2.518
## ---
## Signif. codes:  0 '***' 0.001 '**' 0.01 '*' 0.05 '.' 0.1 ' ' 1

\[F=\frac{(180.07-173.75)/(7-2)}{173.75/(76-7)}=0.5\]

\(F=0.50, p=0.773\). We conclude that there is no evidence of lack of fit.

5.4 Added variable plots

In simple linear regression we can assess the importance of a predictor by:

t-statistic
\(\mbox{SSR}\)
\(R^2\)
\(Y\)-\(X\) plot.

The analogues in multiple regression for assessing the importance of a predictor in the presence of other predictors are:

t-statistic
Seq/Extra SS
partial \(R^2\)
added variable plot.

5.4.1 Example: STEAM vs. TEMP, INV, PROD

Model A: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1+ \beta_2 x_2\)

Model B: \(\mathbb{E}[y] = \beta_0 + \beta_1 x_1 + \beta_2 x_2 + \beta_3 x_3\)

where \(x_1\) = TEMP, \(x_2\) = INV, \(x_3\) = PROD.

The t-statistic for PROD is small: \(T=0.10, p=0.920\)
\(\mbox{SSR}(B|A) = 0.004\) is also small.
The partial \(R^2\) for PROD is the proportion of variability in the response unexplained by TEMP and INV that is explained by PROD

\[\begin{align*} R^2(\mbox{PROD|TEMP, INV})& =\frac{\mbox{SSR}(B|A)}{\mbox{SSE}(A)} & = \frac{0.004}{8.931} = 0.00045=0.045\%\\ \end{align*}\]

The added variable plot shows the relationship between a response and a predictor, adjusting for other predictors in the model.

‘Adjusting’ \(Y\) for predictors \(X_1,...,X_k\) is achieved by computing the residuals from the regression of \(Y\) on \(X_1,...,X_k\). The resulting residuals can be thought of as \(Y\) with the effect of \(X_1,...,X_k\) removed.

5.4.2 Example: Added variable plot for PROD.

i.e. should we add PROD to the model containing the predictors TEMP and INV? (Response is STEAM).

Compute \(e\)(STEAM\(|\) TEMP, INV), i.e. the residuals from regression of STEAM on TEMP and INV.
Compute \(e\)(PROD\(|\) TEMP, INV), i.e. the residuals from regression of PROD on TEMP and INV.
AVP for PROD: Plot \(e\)(STEAM\(|\) TEMP, INV) vs. \(e\)(PROD\(|\) TEMP, INV).

We can also do:

AVP INV: Plot \(e\)(STEAM\(|\) TEMP, PROD) vs. \(e\)(INV\(|\) TEMP, PROD) AVP TEMP: Plot \(e\)(STEAM\(|\) INV, PROD) vs. \(e\)(TEMP\(|\) INV, PROD)

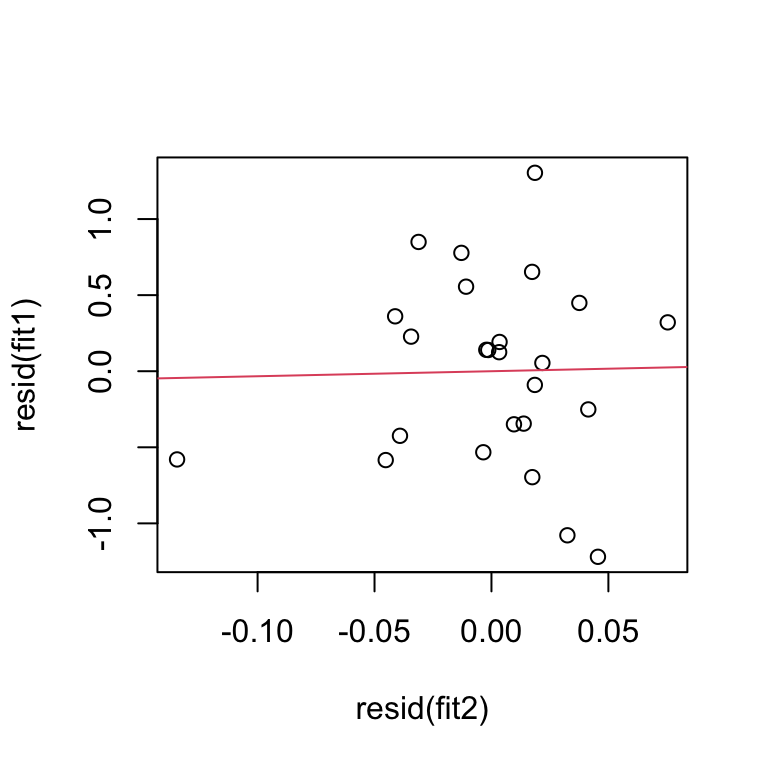

5.4.3 Example: Steam data cont’d

fit1 <- lm(STEAM ~ TEMP + INV, steamdata)
fit2 <- lm(PROD ~ TEMP + INV, steamdata)
summary(lm(resid(fit1)~ resid(fit2)))

##
## Call:
## lm(formula = resid(fit1) ~ resid(fit2))
##
## Residuals:
##     Min      1Q  Median      3Q     Max
## -1.2348 -0.4116  0.1240  0.3744  1.2979
##
## Coefficients:
##              Estimate Std. Error t value Pr(>|t|)
## (Intercept) 4.716e-18  1.246e-01   0.000    1.000
## resid(fit2) 3.305e-01  3.122e+00   0.106    0.917
##
## Residual standard error: 0.623 on 23 degrees of freedom
## Multiple R-squared:  0.0004869,  Adjusted R-squared:  -0.04297
## F-statistic: 0.0112 on 1 and 23 DF,  p-value: 0.9166

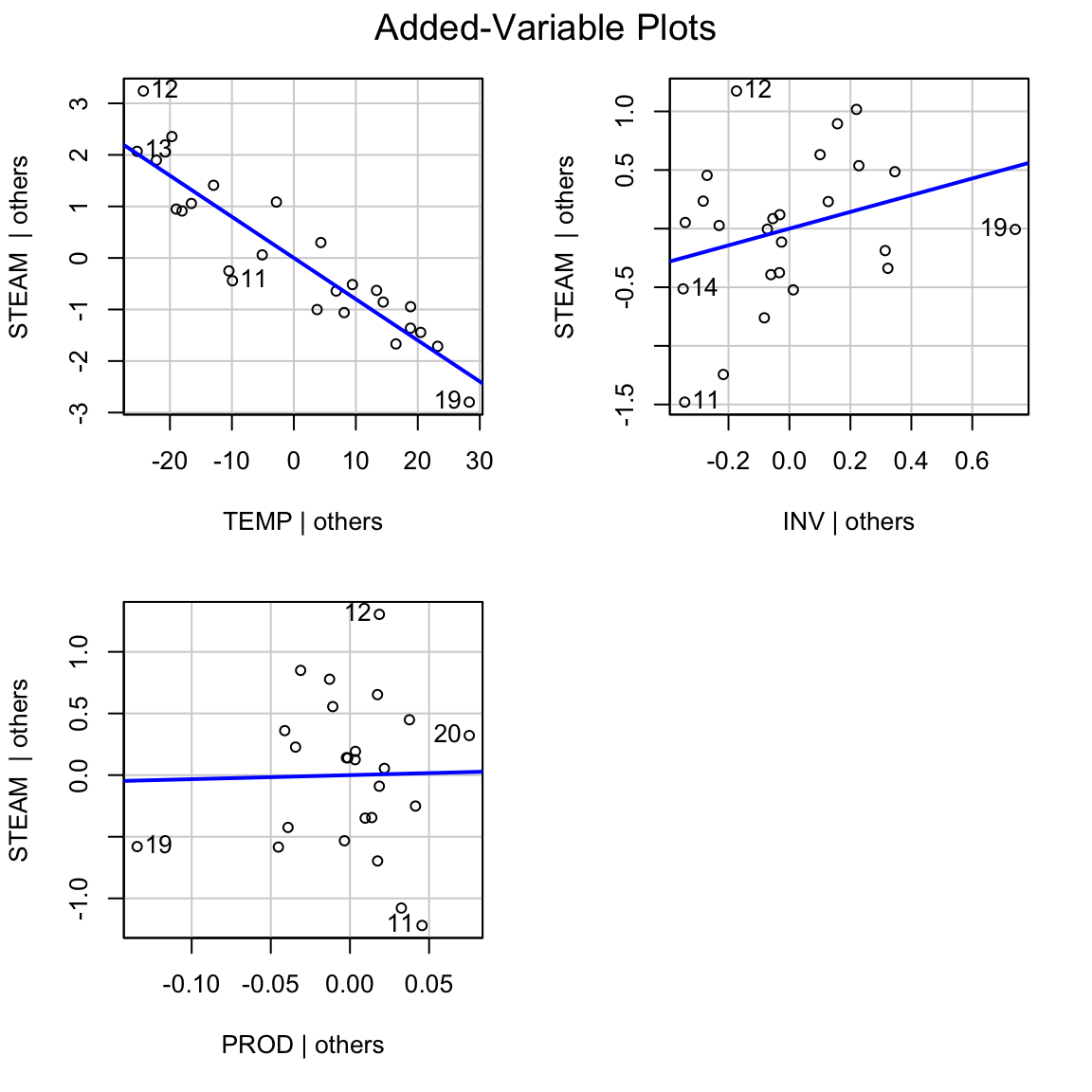

Alternatively you can use the avPlots function in the library(car).

library(car)
avPlots(modelB) # in library(car)

5.4.4 Properties of AVPs:

Estimated intercept is 0.
Slope of the line in AVP for PROD equals \(\hat{\beta}\) (the coefficient of PROD in the model with TEMP, INV and PROD as predictors.
Residuals in AVP equal residuals from regression of STEAM on TEMP, INV and PROD.
\(R^2\) in AVP for PROD is the partial \(R^2\) for PROD, i.e. \(R^2\)(PROD\(|\)TEMP,INV).
\(\hat{\sigma}^2\) from AVP for PROD \(\approx \hat{\sigma}^2\) from full model.

\[\hat{\sigma}^2_{AVP}(n-2) = \hat{\sigma}^2_{full}(n-p)\]

The points in an AVP are clustered tightly around a line if and only if the variable is important.

AV plots may also show outliers, or if the apparent adjusted association between \(Y\) and \(X_j\) is due to an influence point.

4 Multiple regression

6 Diagnostic methods (in more details)
